SHAFTLESS SCREW CONVEYOR series TSA
OY EKOTUOTANTO AB supplies also very high quality shaftless screw conveyors.
Shaftless screw conveyor consist of rotating shaftless screw inside U-shaped trough having an inlet hopper and outlet spout, being the rest of conveyor completely closed.
The shaftless screw conveyor allows to convey sticky and entangling material.
The bottom of the trough is an anti-wear protection in form of HDPE liner or sliding bars, depending on material to be conveyed.
The shaftless screw conveyor can be pushing or pulling type, which one is the most applicable.
The shaftless screw conveyor can also be inclined from 0 to 30 degrees.
Technical Data Shaftless Screw Conveyors

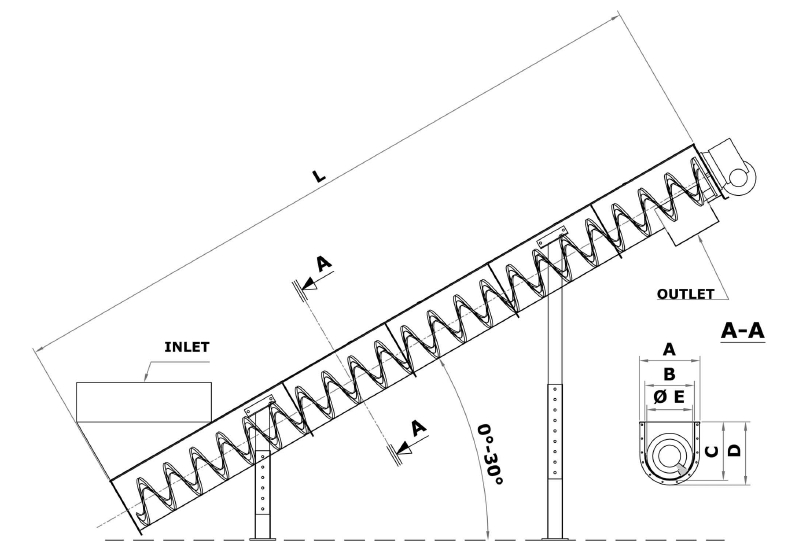

DIMENSION TABLE FOR SHAFTLESS SCREW CONVEYOR
|
Model
|
A (mm)
|
B (mm)
|
C (mm)
|
D (mm)
|
øE (mm)
|
L max.
|
Angle º
|
TSA 150
|
275 |
175
|
207
|
248
|
145
|
12000
|
0 - 30
|
TSA 200
|
325
|
225
|
253
|
290
|
180
|
18000
|
0 - 30
|
TSA 250
|
375
|
275
|
303
|
340
|
240
|
18000
|
0 - 30
|
TSA 300
|
450
|
325 |
363
|
410
|
280
|
25000
|
0 - 30
|
TSA 350
|
500
|
375 |
428
|
475
|
320
|
25000
|
0 - 30
|
TSA 400
|
550
|
425 |
488
|
534
|
360
|
30000
|
0 - 30
|
TSA 500
|
665
|
525 |
608
|
665
|
460
|
30000
|
0 - 30
|
TSA 600
|
765
|
625 |
739
|
739
|
560
|
36000
|
0 - 30
|
FLOWRATE OF SHATLTLESS SCREW CONVEYOR m³/h
|
Model
|
RPM=18
|
RPM=30
|
Screenings
|
Sludge |
Angle °
|
0 - 15 |
15 - 30
|
0 - 15
|
15 - 30
|
TSA 150
|
0,5 |
0,3
|
1,5
|
1,0
|
TSA 200
|
1,0
|
0,7
|
3,2
|
1,6
|
TSA 250
|
2,5
|
1,5
|
7,0
|
4,1
|
TSA 300
|
3,7
|
1,9 |
11,0
|
6,5
|
TSA 350
|
5,2
|
2,6 |
15,0
|
9,0
|
TSA 400
|
8,0
|
4,0 |
20,0
|
13,0
|
TSA 500
|
16,0
|
8,0 |
40,0
|
26,0
|
TSA 600
|
23,0
|
15,0 |
65,0
|
42,0
|
